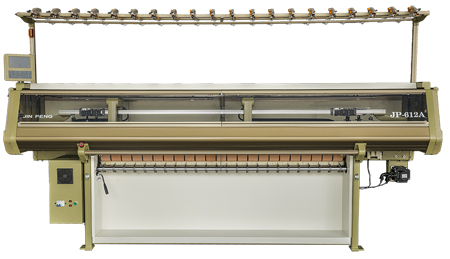

Double Head Jacquard Flat Knitting Machine (JP-612)

Computerized controled system.Compare to old type model this upgrade model.

With visual interface, touchscreen which easy to operate.
More memery to store files.
System seting can be reset to factory seting.
Knitting movement and testing virtual reality.
Fast edit basic design database make programing more efficient.
Adding system maintainance history help our after service support in a more convinient way.
New and updated electronic hardware enable the machine with more functions.

MODEL	JP-612
GAUGE	9G, 12G, 14G, 16G, 18G, 20G
BED WIDTH	80 Inches
SPEED	Maximum 1.5m/s depending on knitting wide and knitting material
YARN FEEDER	Two side interchangeable feeders, 6 colors.
CARRIAGE	Double carriages 1+1 tamdem systems, tuck knitting and high and low butt needle.
JACK	(With needle jack for semi jacquard)
STITCH DENSITY	00-99 divisions by computer program control.
RACKING	Servo Motor control maximum 2 inches, racking one or half needle at any position, auto recover function.
TAKE DOWN	(From 1-9 level option.)
EMERGENCY STOP	Yarn cut, knot, yarn loose,fabric drop, fabric roll back, floating tuck, needle shock, emergency stop, 0 position error, motor over drive.
DRIVER SYSTEM	The carriage is driven and controled by the jinpeng operating system.
TOP TENTION	New type top tention
LIGHT	Green: working \| Red: error \| Yellow: Normal stop
LAMP LIGHT	Location inside cover.
POWER	(220V/380V)

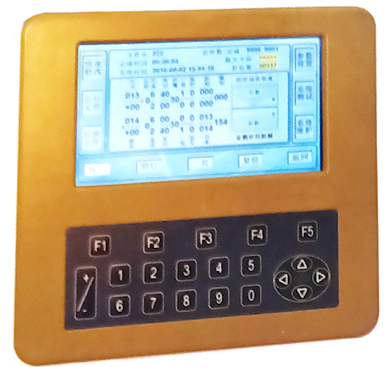

CONTROL SYSTEM	(Speed machine head return, 7 inches touch screen Jinpeng system USB memery, time countting, visual interface control, maintenance history, easily system update.)
CONTROL LANGUAGE	English or Chinese
WEIGHT	795 KG
