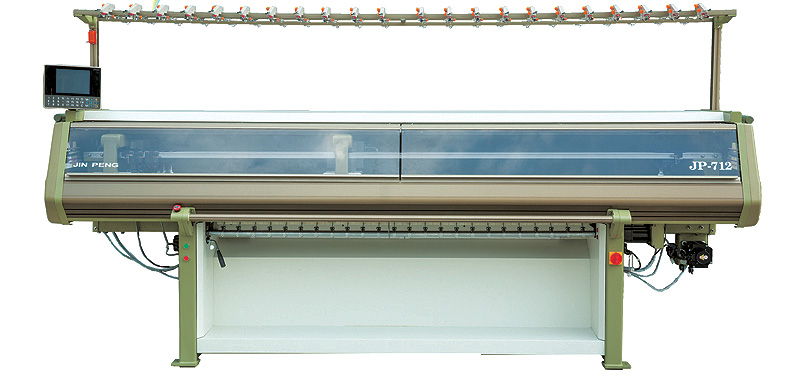

Single/Double System Jacquard Flat Knitting Machine (JP-712)
Jin Peng Products Range

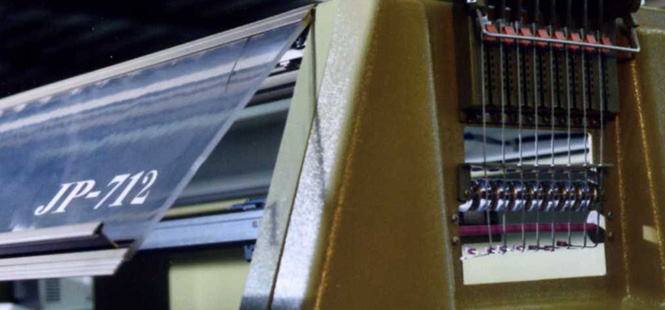

Single/Double System Jacquard Flat Knitting Machine (JP-712)

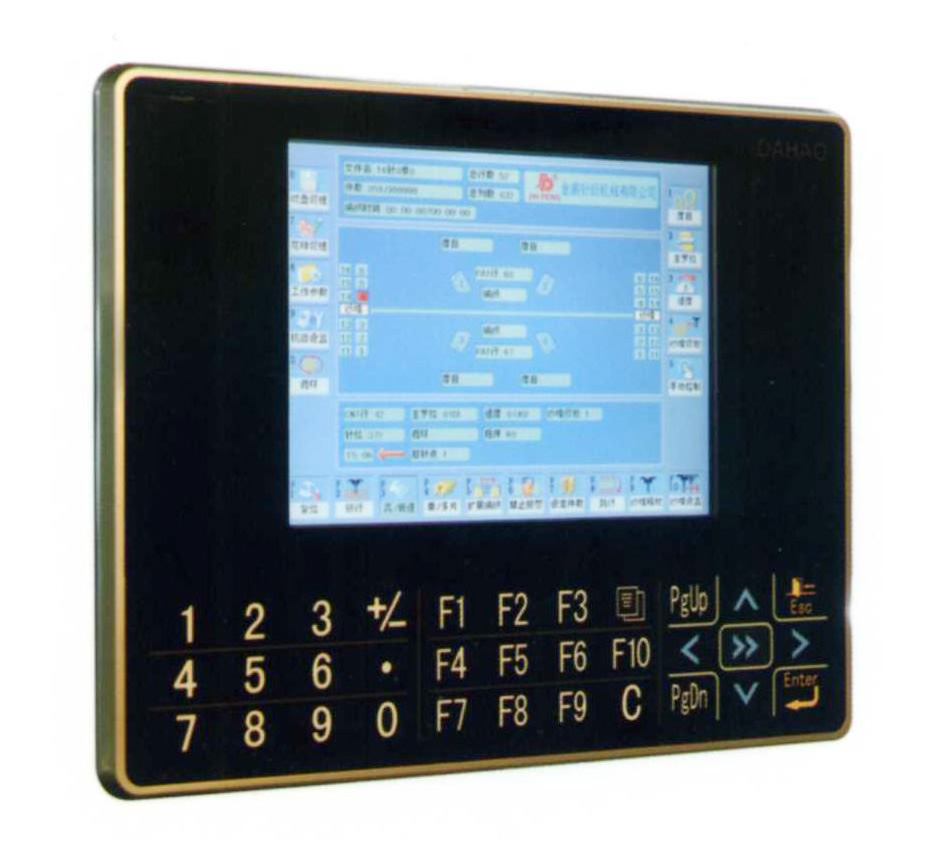

Control Board
Visual touchscreen interface showing knitting movement. It is easy for the employee to change the data setting. Designs can be stored or transferred from USB disk. The quick edit function is useful for a new operator. New safety doors and emergency protection increase operator safety.
Technical Specification For Single/Double System Jacquard Flat Knitting Machine (JP-712)
| Weight | 925 kg |
|---|---|
| Dimensions | 3625 × 1800 × 840 mm |
| Production Capacity | 1.200 – 1.400 Pieces/1 Day (Average) |
| Supply Capacity | 36,000 – 42,000 Pieces/1 Month (Average) |

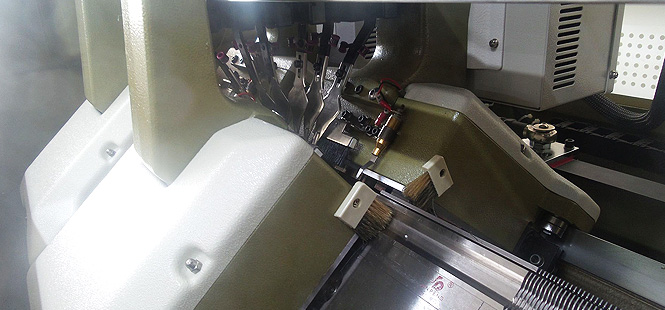

| Cam System | Single carriage and 3 system, 8 needle jack full jackuard selection cams |

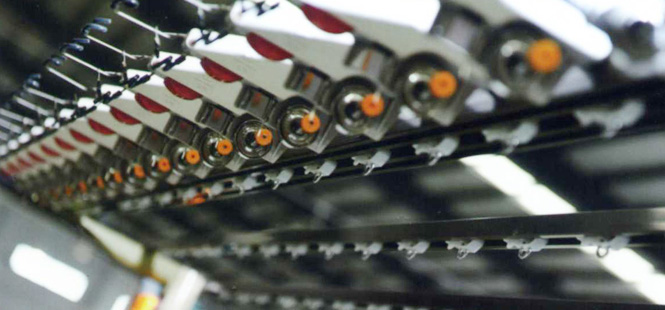

| Feeder | 3 sets of 8 feeders on both side of the 4 feeders rail |
| Stitch Density | 32 sets of density options from level 0~650 |
| Gauge | 12G, 14G, 16G |
| Knitting Width | 80″ inch |
| Knitting Speed | Max. 1.5m/s depending on knitting wide and knitting material. 32 sets of speed control |

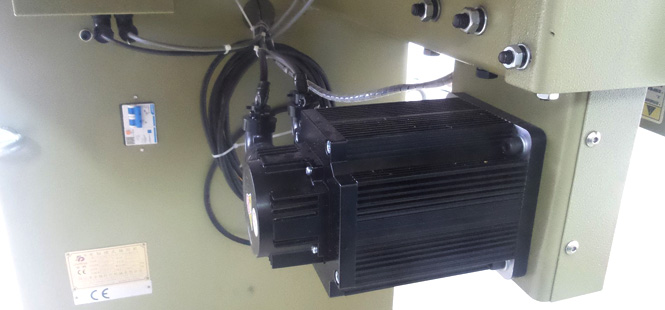

| Racking | Max 2 inches by servo motor, precision adjustable |
| Roller | 32 sets of roller control, each set from level 0~100 adjustable |
| Control System | The carriage is driven and controlled by the Boosan operation system |
| Automatic Intervention | Cam motor error, Fabric drop, Fabric end, Jacquard error, Knot, Motor overload, Motor setting error, Needle break, Side feeder |
| Power | 220V/380V |
